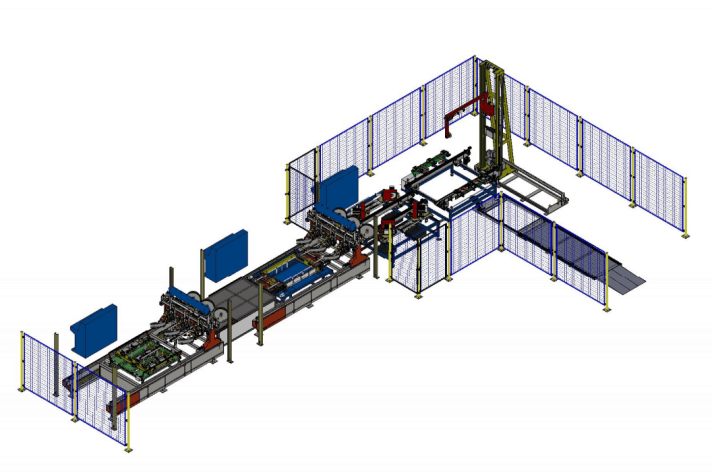

KBJ302-Automatic EPAL Pallet Making Machine
Model: KBJ302
Automatic Pallet Nailing System
1. Automatic pallet-top & pallet-bottom nailing
2. 4 groups of corner cutting mechanism
3. 6 groups of branding mechanism
4. Robotic arm stacker
5. Discharge storage/conveyor
6. Can be adapted to EPAL 1#/2#/3# pallets, or block-type pallets similar to EPAL
Dimension: L17m*W9.5m*H4m
Power: 22kw
Voltage: AC 3P/380V 50-60Hz
Air pressure: 0.7-0.8Mpa
Efficiency: 60-90Pcs/h
Operators: 2 persons
